About pipe and drape systems: "pipe and drape are composed of uprights, bases, crossbars and fabric drapes". For trade show displays, banner stands or event venues - Save time & space by using this pipe and drape system.
RK pipe and drape system
Drape must be "pleated" or installed with folds for a finished look. Usually multiple sections of drape and horizontals are lined up by the uprights having multiple slots and the horizontals going in two opposite directions, so you would see a long & wide walls of pipe and drape. In other words, sequential sections of drapery panels make up the wall of drape.
Talking about uprights and bases, "Uprights and bases are connected to make the structure stand up. Now, adjustable design represents a major new trend, customers choose adjustable pipe and drape uprights, and choose steel pipe and drape base plates to keep the whole structure stable" ( refer link http://www.rkpipeanddrape.com/Pipe_and_Drape/, you could watch these quotes here).
Crossbars are what connect different uprights and drapes, the small hooks on each end of the bars will be placed into the slot on the top of the uprights. There are two size of pipe and drape cross bar products: standard sized and telescopic. Thus the parts can be used to support drape ranges from 1' to 10' or other telescopic length.
Cross Bars/Cross Beams | |||
Standard cross bars
|
Telescopic Drape Supports/Crossbars
|
||
3' × 1 3/8" O.D., 6' × 1 3/8" O.D., 8' × 1 3/8" O.D. | 2' - 3' TDS(stops at 3' ), 3' - 5' TDS(stops at 5'), 4' - 7' TDS(stops at 6' & 7'), 5' - 8' TDS(stops at 8'), 6' - 10' TDS(stops at 8' & 10'), 7' - 12' TDS(stops at 10' & 12'), 8' - 14' TDS(stops at 10', 12' & 14'), 9' - 16' TDS(stops at 12', 14' & 16'), 8' - 10' TDS(3pc special drape support) | ||
Uprights | |||
Standard Uprights
|
Adjustable uprights
|
||
Fixed Height | Special Height Available | TWO PIECE MODELS | THREE PIECE MODELS |
3' × 1 1/2" O.D. (with plastic cap), 6' × 1 1/2" O.D., 8' × 1 1/2" O.D. | (40mm)1 1/2" (O.D.), 3' × 2" O.D.(with plastic cap), 6' × 2" O.D., 8' × 2" O.D., (50mm)2.0" (O.D.), Slots additional set of 4 slots (per set), Cap plastic cap (1 1/2" or 2.0" O.D.) | 3' - 5', 4' - 7', 5' - 8', 6' - 10', 7' - 12', 8' - 14', 9' - 16', 10' - 18', 11' - 20', 12' - 22', 13' - 24', 14' - 26' | 5' - 11', 6' - 14', 7' - 17', 8' - 20', 9' - 23' |

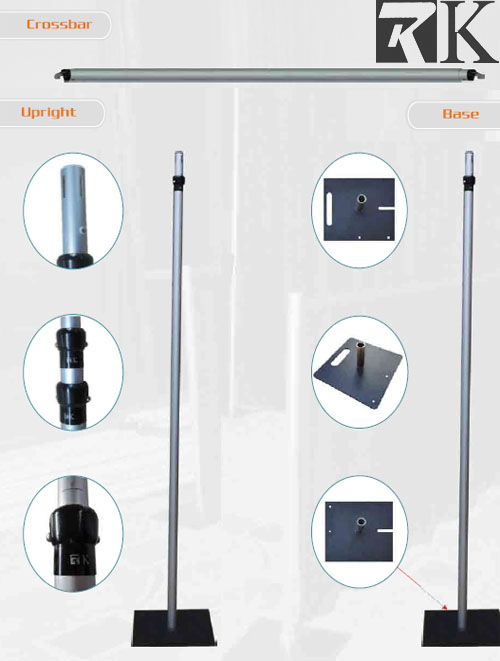

Above is a whole structure of pipe and drape systems. Portable Custom Pipe and Drape Systems are extremely versatile and can be used for a variety of events (like Exhibits/trade show booths, conventions). Compare Prices, Reviews and Buy with more choices & low prices at RK.
